Amroll Drum Motor--TM138F

TM138F asynchronous oil immersed drum motor,the effective power of the motor is up to 1. 10kW. All stainless steel material can meet the strict requirements of sanitary and humid environment.This kind of drum motor is typically used in:

Medium load belt conveyor
Meat processing conveyor
Food processing conveyor
Packaging machine
Belt sorting conveyor
Assembly line
Belt conveyor for agricultural products
Warehousing and vehicle loading

Motor type：Asychronous, AC, 3 phase
Key words：Belt drive, Oil-filled
Tag：Hygiene, Lagging

Description
Additional information

Drum motor shell

●Stainless steel crowned shell treated with anti-rust oil
●The standard shell is coronal and the surface is machined with non-slip threadss

Gear transmission

●Gears machined and honed to AGMA/DIN 6 standards to ensure low nois

Motor

●Common global voltages at 50 Hz or 60 Hz
●AC asynchronous motor
●Motor windings insulation class F
●All motors with thermal protection
●Oil cooled electrical motor
●Cable length minimum 1.2 meters outside shaft

Sealing system

●Double shaft sealing system
●Sealing system-degree of protection IP 66/67

Oil

●Pre lubricated with oil
●Oil change recommended every 50,000 hours of operation

Other items

●Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
●Belt speed and face width (L) on request
●International authority CE and UL safety certification
●Non-standard drum motors are available on request.

*AMROLL Drum Motor TM138F-3 400V/50Hz**
Power [kW/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Full load torque [Nm]	Full load belt pull [N]	Full load current [A]	Min. face width (L) [mm]	Min.L Weight [kg]
0.25/0.34	6	3	58.87	0.11	162.15	2350	0.99	350	14
			53.21	0.13	135.1	1958
			48.36	0.14	115.85	1679
0.37/0.50	2	3	16.87	1.19	21.87	317	0.92	350	14
	2	3	15.33	1.32	19.46	282	0.92	350	14
	4	3	58.87	0.17	150.01	2174	1.05	350	14
			53.21	0.19	133.31	1932
			48.36	0.21	119.99	1739
			37.23	0.28	95.98	1391
			29.33	0.35	75	1087
			26.51	0.39	66.65	966
			24.1	0.42	60.03	870
			18.55	0.55	48.02	696
		2	16.87	0.6	43.75	634
			15.33	0.67	38.92	564
			11.8	0.87	30.64	444
	6	3	58.87	0.11	239.98	3478	1.5	350	14
			53.21	0.13	199.96	2898
			48.36	0.14	171.4	2484
0.55/0.75	2	3	58.87	0.34	111.51	1616	1.28	350	14
			53.21	0.38	99.08	1436
			48.36	0.42	89.22	1293
			37.23	0.54	71.35	1034
			29.33	0.69	55.75	808
			26.51	0.76	49.54	718
			24.1	0.84	44.57	646
			18.55	1.1	35.67	517
		2	16.87	1.2	32.45	471
			15.33	1.3	28.91	419
			11.8	1.7	22.77	330
	4	3	58.87	0.17	222.94	3231	1.57	400	17
			53.21	0.19	198.17	2872
			48.36	0.21	178.37	2585
			37.23	0.27	142.69	2068
			29.33	0.34	111.51	1616
			26.51	0.38	99.08	1436
			24.1	0.42	89.22	1293
			18.55	0.54	71.35	1034
		2	16.87	0.6	65.07	943
			15.33	0.65	57.82	838
			11.8	0.85	45.54	660
0.75//1.02	2	3	58.87	0.34	152.01	2203	1.63	400	17
			53.21	0.38	135.1	1958
			48.36	0.41	121.65	1763
			37.23	0.54	97.29	1410
			29.33	0.68	76.04	1102
			26.51	0.75	67.55	979
			24.1	0.83	60.79	881
			18.55	1.08	48.65	705
		2	16.87	1.18	44.37	643
			15.33	1.3	39.4	571
			11.8	1.68	31.05	450
	4	3	48.36	0.21	243.23	3525	2	400	18
			37.23	0.27	194.58	2820
			29.33	0.34	152.01	2203
			26.51	0.38	135.1	1958
			24.1	0.42	121.65	1763
			18.55	0.54	97.29	1410
		2	16.87	0.6	88.73	1286
			15.33	0.66	78.87	1143
			11.8	0.85	62.1	900
1.10/1.50	2	3	48.36	0.41	178.37	2585	2.62	400	18
			37.23	0.54	142.69	2068
			29.33	0.68	111.5	1616
			26.51	0.75	99.08	1436
			24.1	0.83	89.22	1293
			18.55	1.08	71.35	1034
		2	16.87	1.18	63.69	923
			15.33	1.3	57.82	838
			11.8	1.69	45.54	660
At the min. face width (L), the total weight of a drum motor grows approx.2.5kg per 100 mm.

TM138F optional list-drum motor/idler pulley
Specifications	Drum motor	Idler pulley
Shell
Stainless steel(std. 304) crowned	1	1
Stainless steel(std. 304) cylindrical	2	2
Stainless steel(std. 304) cylindrical+ key	2	2
End housing (front & rear)
Cast stainless steel(std. 304)	1	1
Shaft (front & rear)
Stainless steel(std. 304)	1	1
Rubber lagging
Hot vulcanized black smooth rubber lagging	2	2
White and blue rubber lagging in food quality	2	2
Urethane lagging	2	2
Sprockets for modular belting	2	2
V-grooves in the rubber lagging	3	3
Electrical motors
3-phase asynchronous motor	1
3*400V/50Hz	1
Dual voltage motor	2
Most common global voltages at 50 or 60 Hz	1
Thermal protection	1
Lubricating oil
Food grade oil (FDA and USDA)	2
Electrical connection
Straight cable connector	1
Elbow stainless steel cable connector	2
Terminal box connector	3
Oil resistant PVC cable	1
LS halogen-free cable	2
Screened cable (for VFD and brakes)	3
Other options
Mechanical backstop	2
Electromagnetic brake	2
Modified for vertical or angled mounting	3
Operation with VFD	2
Note:1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer

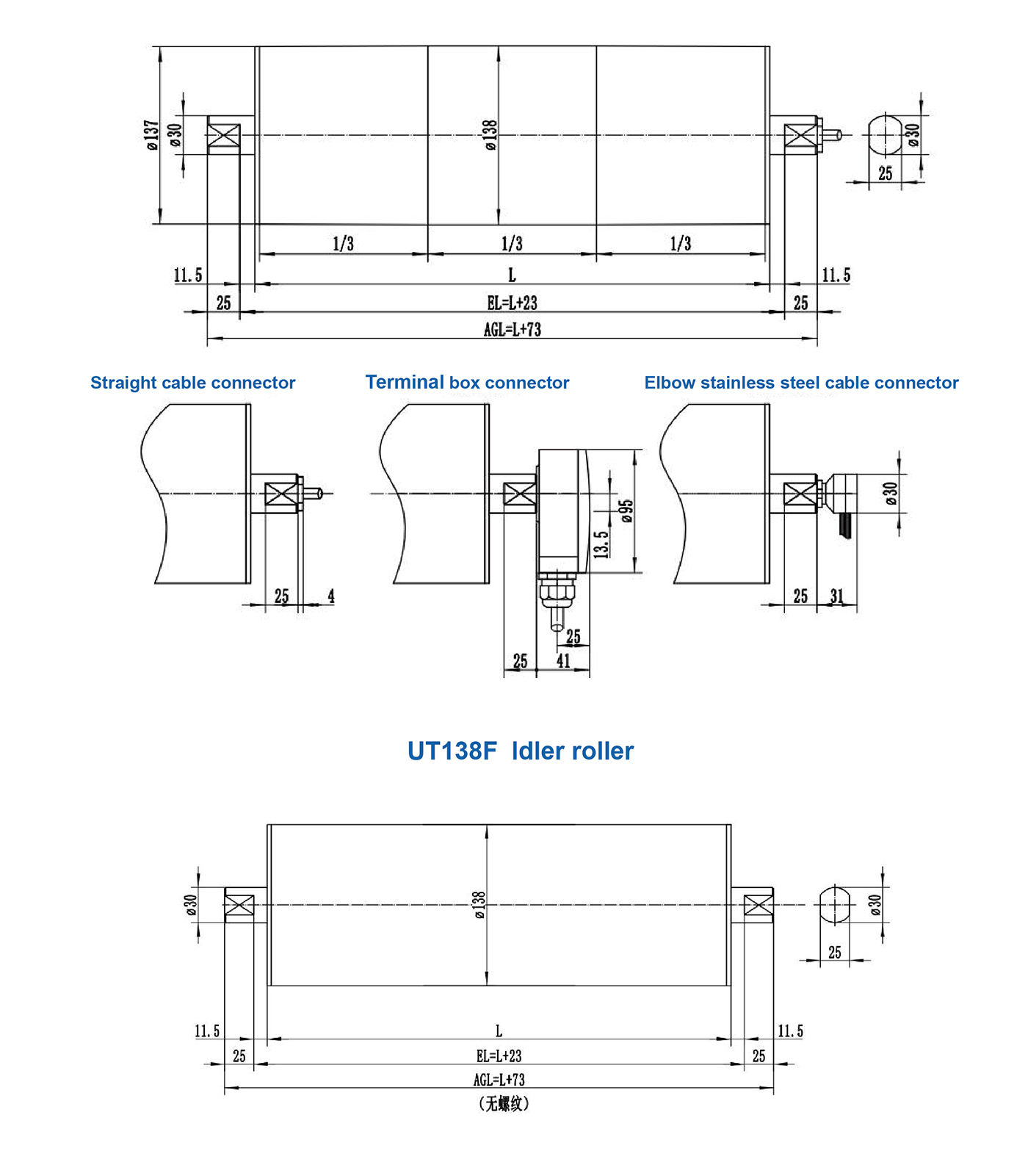

Standard Dimension

TM138F Drum motor
