Extremely highreliability:The product operates well in various environments,including high and low temperatures, and has low requirements for the usage environment.
Low noise:The precision ball bearing is fixed in the steel stamping bearing seat,which ensures quiet operation.
Side loading:The precision ball bearing is fixed in the steel stamping bearing seat,which ensures quiet operation.
Stable structure:The non-drive side bearing components can be axially fixed in multiple ways,and theperfect closing radius is added to achieve a stable product structure.
Anti-static design:The entire series can be made anti-static.
Motor type：
Key words：
Tag：
Tube Data：φ50×1.5mm,60×2.0mm,material is Q235B or stainless steel 304
Shaft Data：φ12mm(for tube withp50),15mm(for tube withp60),material is 45#or stainless steel 304
End Cap Data：Precision ball bearings are fixed in steel stamping bearing seats
Bearing Data：6001Z,6002Z,made of bearing steel or stainless steel
Processing Technology：Internal and external thread,milling,spring-pressed shaft,surface knurling,punching,etc
Load capacity |
||||||||||
| Ø Tube/ thickness (mm) |
Ø Shaft (mm) | Installation Method | Maximum static load (kg)for installation length (mm) | |||||||
| 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | |||
| φ38X1.2 | φ12 | Internal thread | 80 | 80 | 80 | 58 | 38 | 25 | 18 | - |
| Spring loaded | 78 | 78 | 78 | 55 | 35 | 23 | 16 | - | ||
| φ50X1.5 | φ10 | Internal thread | 120 | 120 | 120 | 80 | 65 | 35 | 30 | 25 |
| Spring loaded | 115 | 85 | 50 | 40 | 35 | 30 | 25 | 20 | ||
| φ12 | Internal thread | 150 | 150 | 150 | 150 | 95 | 65 | 50 | 35 | |
| Spring loaded | 145 | 115 | 75 | 55 | 45 | 35 | 30 | 25 | ||
| φ15 | Internal thread | 160 | 160 | 160 | 160 | 105 | 75 | 55 | 40 | |
| Spring loaded | 155 | 155 | 155 | 125 | 100 | 70 | 50 | 35 | ||
| φ50X2.0 | φ12 | Internal thread | 145 | 145 | 145 | 145 | 95 | 65 | 50 | 35 |
| Spring loadea | 145 | 115 | 75 | 55 | 45 | 35 | 30 | 25 | ||
| φ60X1.5 | φ12 | Internal thread | 150 | 150 | 150 | 150 | 95 | 65 | 50 | 35 |
| Spring loadea | 145 | 115 | 75 | 55 | 45 | 35 | 30 | 25 | ||
| φ15 | Internal thread | 160 | 160 | 160 | 160 | 105 | 75 | 55 | 40 | |
| Spring loaded | 155 | 155 | 155 | 125 | 100 | 70 | 50 | 35 | ||
| φ60X2.0 | φ12 | Internal thread | 150 | 150 | 150 | 150 | 150 | 150 | 110 | 85 |
| Spring loaded | 145 | 120 | 75 | 55 | 45 | 40 | 35 | 30 | ||
| φ15 | Internal thread | 230 | 230 | 230 | 230 | 230 | 160 | 115 | 90 | |
| Spring loaded | 220 | 220 | 175 | 130 | 100 | 85 | 70 | 65 | ||

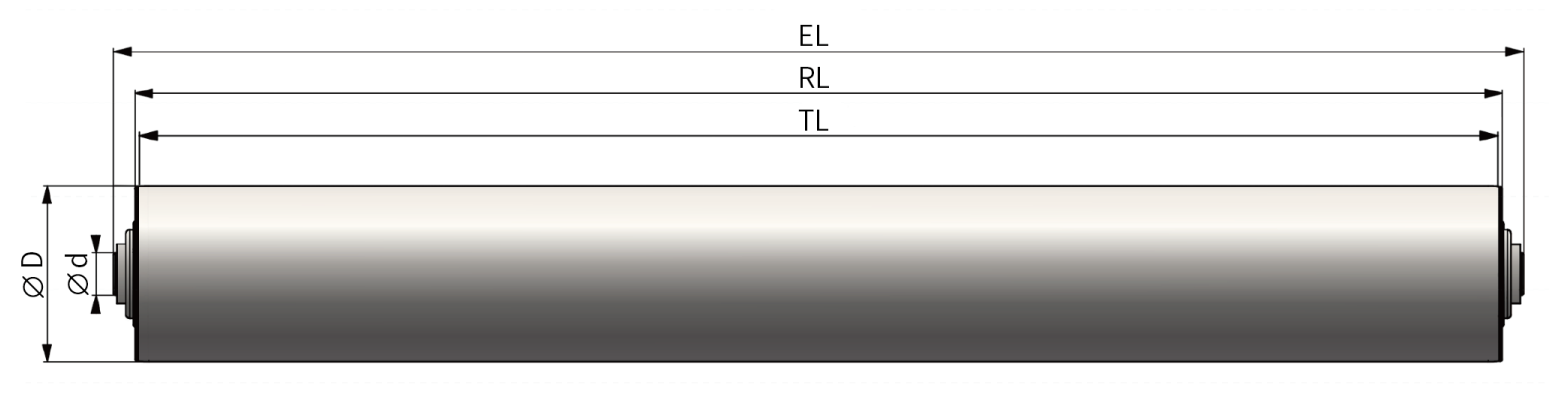

Dimensional |
|||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing Model |
Installation Method |
Size Relationship |
|
|
φ38X1.2 |
φ12 |
6001-Z |
Internal Thread M8 |
RL=TL+2.4 |
EL=RL+11.4 |
|
φ50X1.5 |
φ10 |
6001-Non-standard |
Internal Thread M8 |
RL=TL+2 |
RL=TL+2.4 |
|
φ12 |
6001-Z |
Internal Thread M8 |
RL=TL+2 |
EL=RL+12 |
|
|
φ15 |
6002-Z |
Internal Thread M10 |
RL=TL+2 |
EL=RL+12 |
|
|
φ50X2.0 |
φ12 |
6001-Z |
Internal Thread M8 |
RL=TL+2 |
EL=RL+11.4 |
|
φ60X2.0 |
φ12 |
6001-Z |
Internal Thread M8 |
RL=TL+2.4 |
EL=RL+11.4 |
|
φ15 |
6002-Z |
Internal Thread M10 |
RL=TL+2.4 |
EL=RL+12 |
|
|
φ60X1.5 |
φ12 |
6001-Z |
Internal Thread M8 |
RL=TL+2.4 |
EL=RL+12 |
|
φ15 |
6002-Z |
Internal Thread M10 |
RL=TL+2.4 |
EL=RL+12 |
|

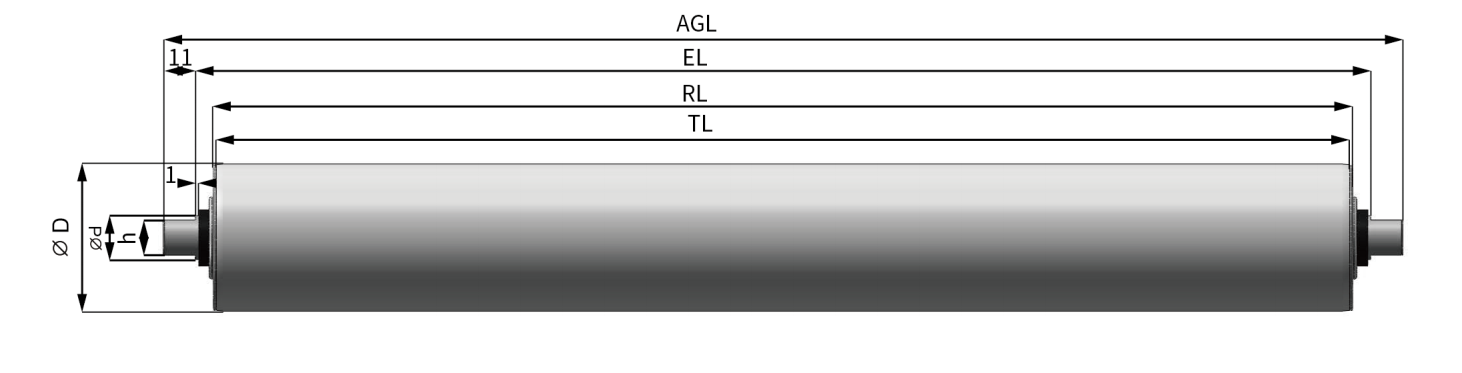

Dimensional |
|||||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing modell |
Installation method |
Thickness |
Dimensional relationship |
||
|
φ38X1.2 |
φ12 |
6001-Z |
Milling flat |
10 |
AGL=EL+22 |
EL=RL+11.4 |
RL=TL+2.4 |
|
φ50X1.5 |
φ10 |
6001-Non-standard |
Milling flat |
8 |
AGL=EL+22 |
EL=RL+12 |
RL=TL+2 |
|
φ12 |
6001-Z |
Milling flat |
10 |
AGL=EL+22 |
EL=RL+12 |
RL=TL+2 |
|
|
φ15 |
6002-Z |
Milling flat |
12 |
AGL=EL+22 |
EL=RL+12 |
RL=TL+2 |
|
|
φ50X2.0 |
φ12 |
6001-Z |
Milling flat |
10 |
AGL=EL+22 |
EL=RL+11.4 |
RL=TL+2 |
|
φ60X2.0 |
φ12 |
6001-Z |
Milling flat |
10 |
AGL=EL+22 |
EL=RL+11.4 |
RL=TL+2.4 |
|
φ15 |
6002-Z |
Milling flat |
12 |
AGL=EL+22 |
EL=RL+12 |
RL=TL+2.4 |
|
|
φ60X1.5 |
φ12 |
6001-Z |
Milling flat |
10 |
AGL=EL+22 |
EL=RL+12 |
RL=TL+2.4 |
|
φ15 |
6002-Z |
Milling flat |
12 |
AGL=EL+22 |
EL=RL+12 |
RL=TI+2.4 |
|

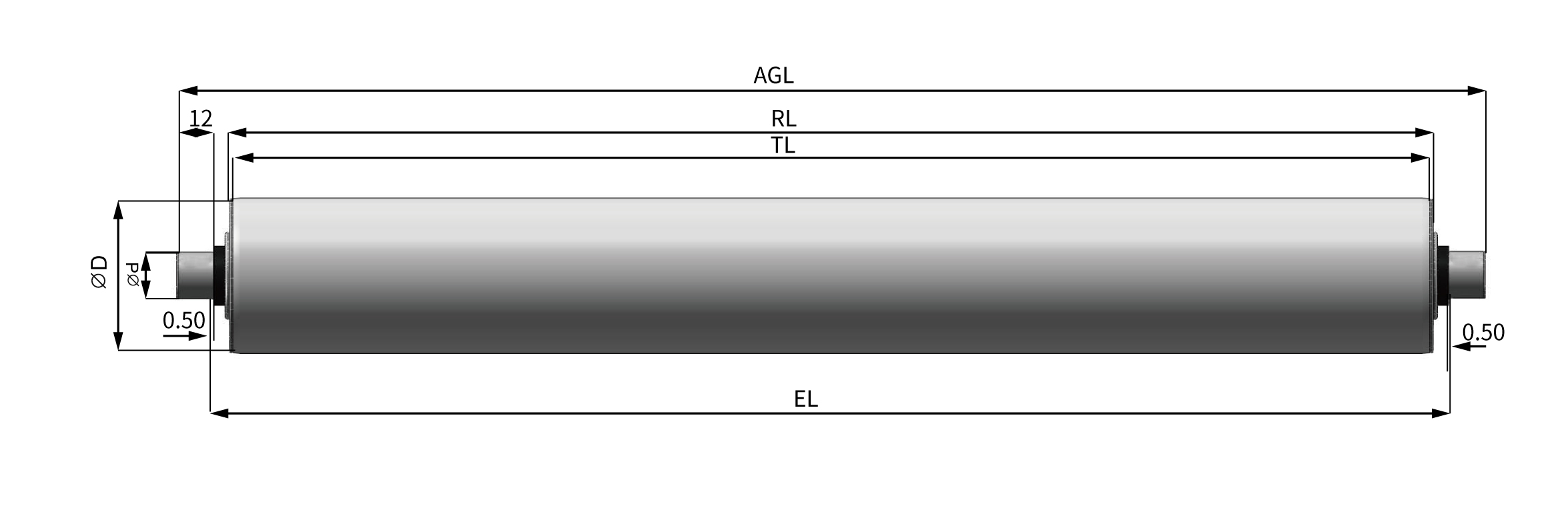

Dimensional |
||||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
||
|
φ38X1.2 |
φ12 |
6001-Z |
Spring-loaded |
AGL=EL+23 |
EL=RI+10.4 |
RL=TL+2.4 |
|
φ50X1.5 |
φ10 |
6001-Non-standard |
Spring-loaded |
AGL=EL+23 |
EL=RL+11 |
RL=TL+2 |
|
φ12 |
6001-Z |
Spring-loaded |
AGL=EL+23 |
EL=RL+11 |
RL=TL+2 |
|
|
φ15 |
6002-Z |
Spring-loaded |
AGL=EL+23 |
EL=RL+11 |
RL=TL+2 |
|
|
φ50X2.0 |
φ12 |
6001-Z |
Spring-loaded |
AGL=EL+23 |
EL=R1+10.4 |
RL=TL+2 |
|
φ60X2.0 |
φ12 |
6001-Z |
Spring-loaded |
AGL=EL+23 |
EL=RL+10.4 |
RL=TL+2.4 |
|
φ15 |
6002-Z |
Spring-loaded |
AGL=EL+23 |
EL=RL+11 |
RL=TL+2.4 |
|
|
φ60X1.5 |
φ12 |
6001-Z |
Spring-loaded |
AGL=EL+23 |
EL=RL+11 |
RL=TL+2.4 |
|
φ15 |
6002-Z |
Spring-loaded |
AGL=EL+23 |
EL=RL+11 |
RL=TL+2.4 |
|
